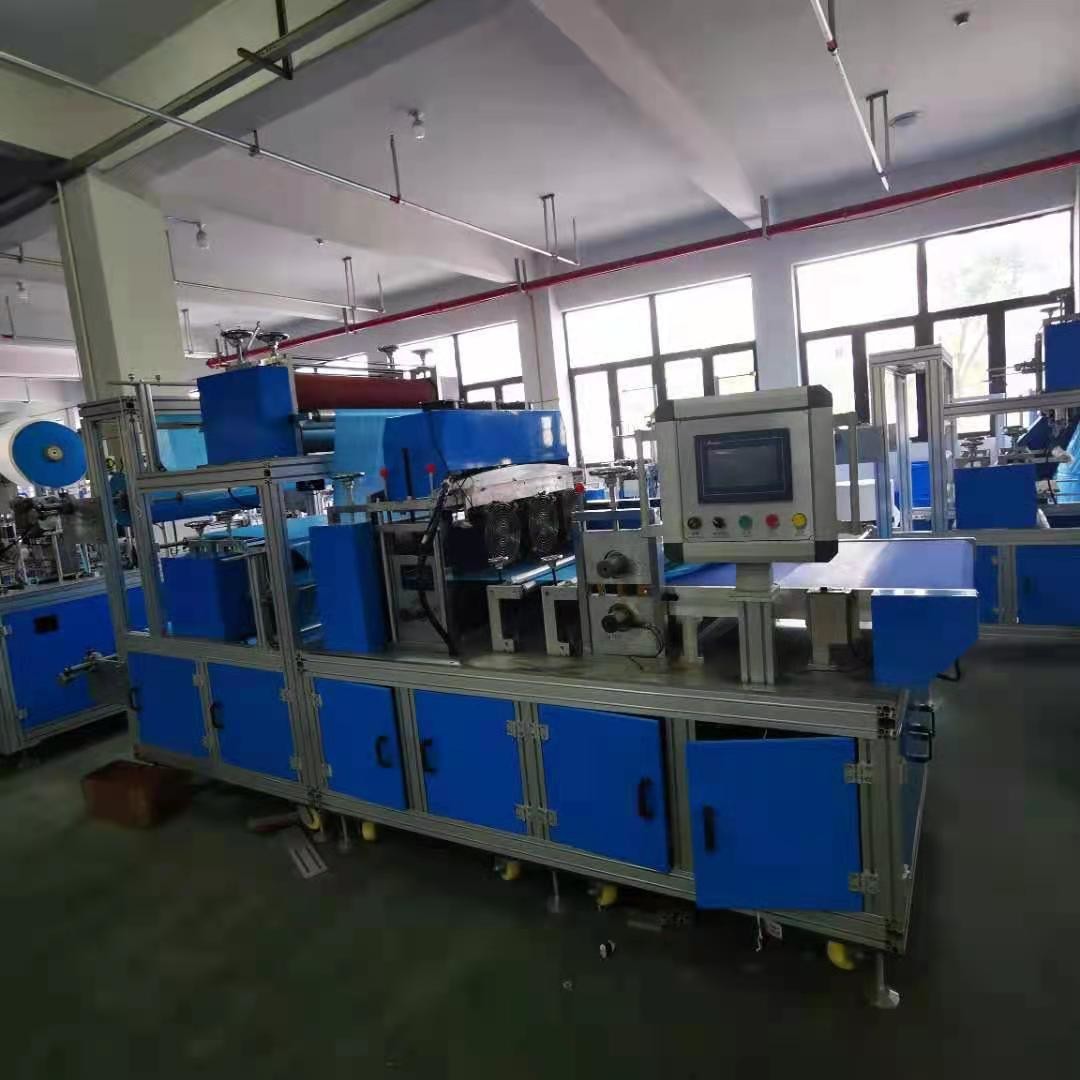

Non Woven Fabric Disposable Surgical Gown Making Machine

Brand Name : Haijing

Model Number : HJ-200

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : 3900

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999 sets per month

Delivery Time : 9 days

Packaging Details : wooden case

material : non woven fabric

Production : 15-30PCS/MIN

Voltage : 220V/380V 50Hz

Overall size : L8000*W3280*H1760mm

Power : 10 KW

Machine weight : 2100KGS

Contact Now

Disposable surgical gown making machine

Automatic feeding -import - welding - forming and cutting to output

3.Samples:

Non Woven Fabric Disposable Surgical Gown Making Machine

Machine characteristics

1.Machine Technical Data

Machine type

G
Production

15-30PCS/MIN
Voltage

220V/380V 50Hz
Overall size

L8000*W3280*H1760mm
Power

10 KW
Machine weight

2100KGS
Packing size

2.Material Report

NO

Material

 Diameter(mm)

Tube Diameter

(mm)

 Width (mm)

Thickness

(mm)

 Weight (Kg)
1. PP non woven 500-1000 Φ76.2 1450-1600 40-60gsm 25-50
2.

Non woven Tape

 500-1000

Φ76.2

 36 40-60gsm 1-3
3

Elastic

 4mm 25kg/box

3.Main machine structure description

Material feeding unit 1set
Welding device 1set
Cutting device 1set
surgical gown making machine main configuration list
Brand Name Name Quantity
Delda touching screen 1set
Delda plc 1set
Delda servo 16sets
Automatic tension Automatic tension system 1set
Automatic edge correction system Automatic edge correction system 1set
Huizhuan Ultrasonic
15k 4200w 2sets
20k 2000w 8sets
Delda servo motor 2kw 1set
Delda servo motor 750w 7sets
Delda servo motor 400w 8sets
Delda servo motor
Imported Cuter mold Cut Mode
ruian Hob cutting 2sets
ruian Auto edge folding system 1set
ruian Welding waist band 4sets
ruian Welding shoulder 2sets
ruian Punching collar 1set
Roll diameter 500mm-1000mm,width 1450mm-1600mm
Auto Rise and drop
Power 35kw
Speed15-30pc/min
8000mmx width 3280mmxheight1760mm Dimension:8000*3280*1760mm accept by air
Whole machine control the all servo device and direct set up speed on touching screen
